Yoke
Ref: VP1-YT
Tubular yoke Kit without spigot for VP1 and VS1

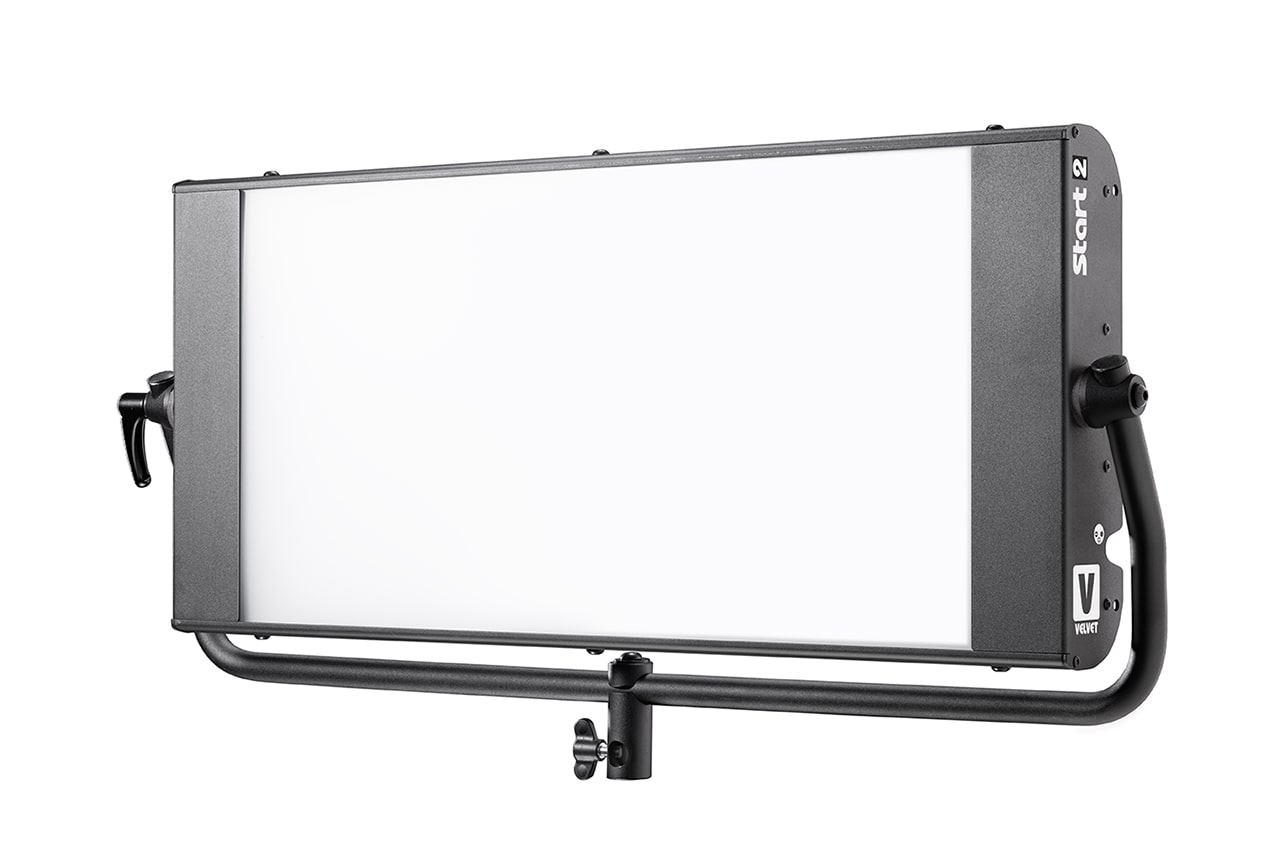

VELVET Start
The best cost-effective studio soft light panel
Green
product
Bicolor
pannel
Highlights

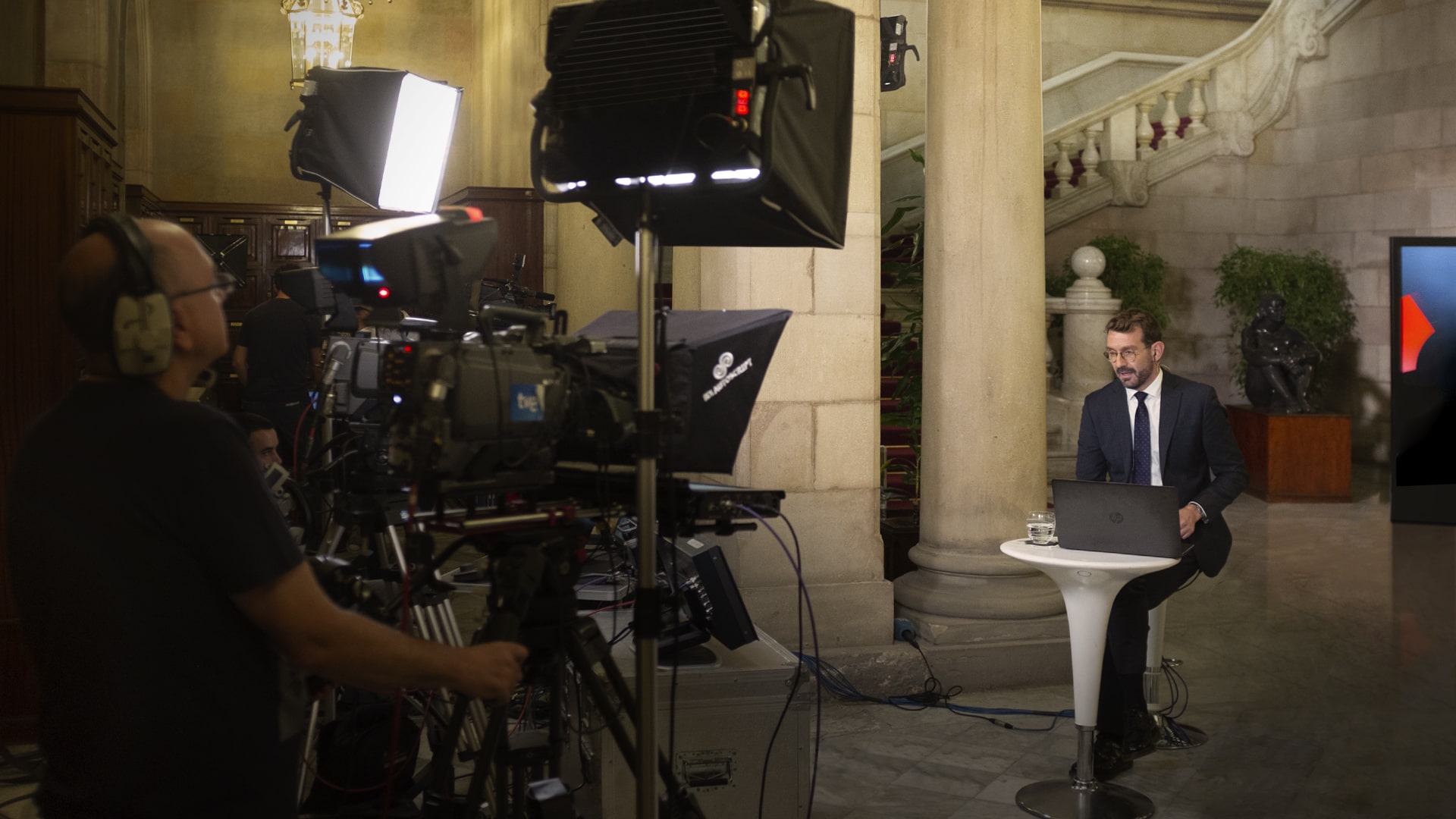

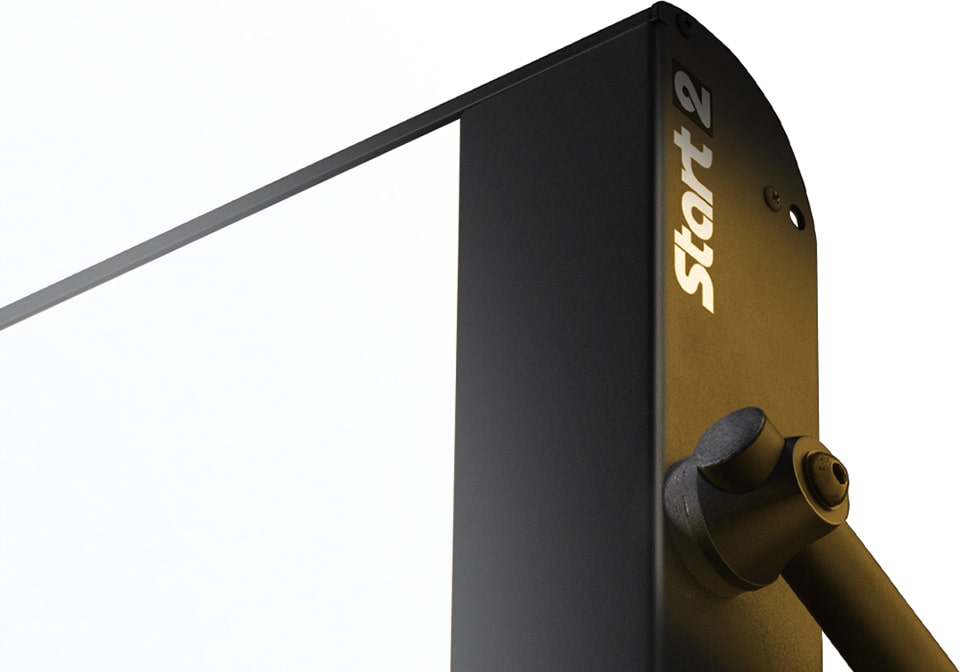

Natural soft light panel
Incredibly soft and wraparound quality light to easily get beauty shots and natural portraits. The natural soft beam is easy to use, produces no shadows on the actors’ faces and does not disturb their eyes.

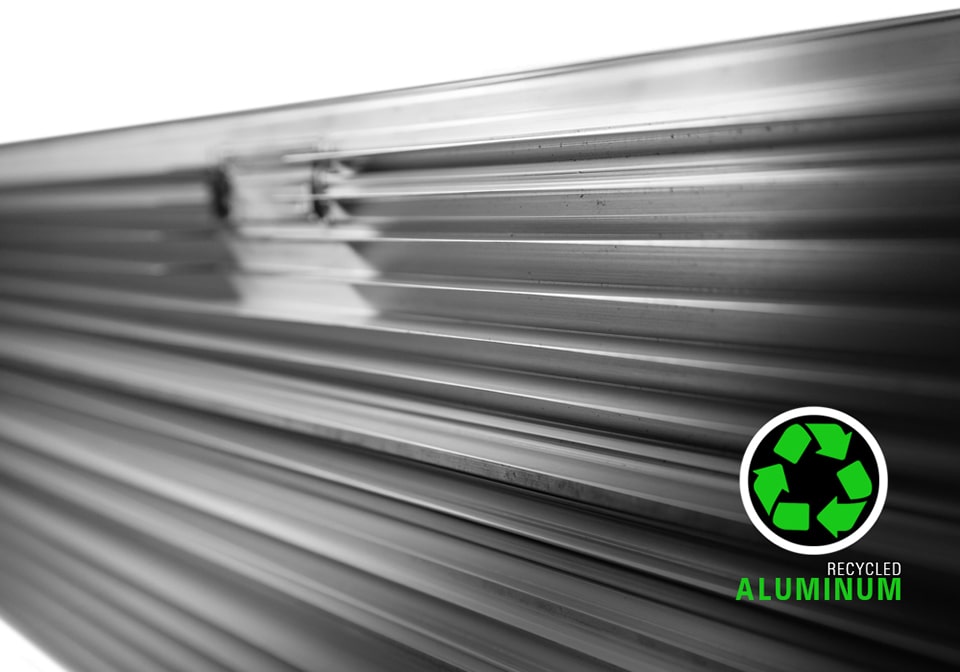

Lightweight low-carbon aluminum body
Lightweight panel and shock resistant housing made in recycled low-carbon aluminum which reduces our/your carbon footprint. A real “made to last” lighting fixture 100% manufactured in Barcelona.

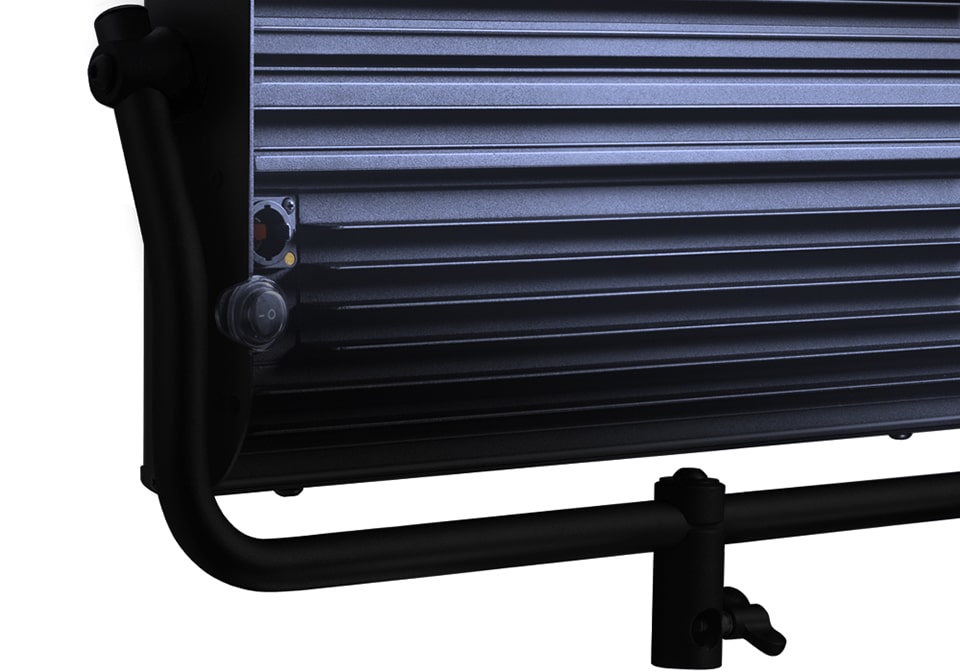

Totally silent fanless operation
Completely silent operation due to its fan-free passive cooling design. None of the vulnerabilities of fan-based cooling.

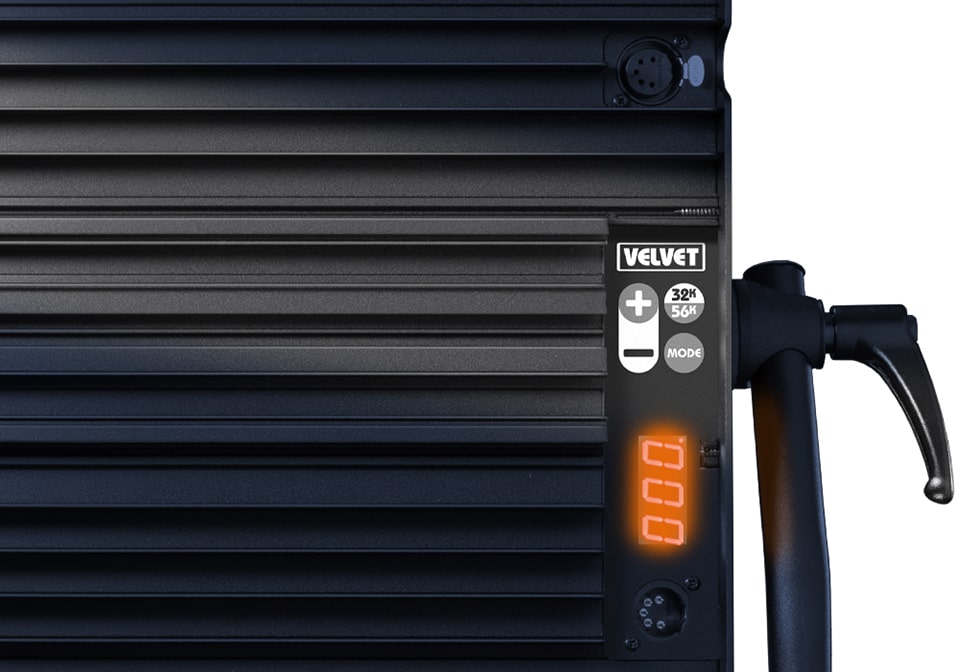

On-board and DMX RDM control
The perfect solution for simplifying studio assignments and channel addressing of every DMX remote control even without a controller. With the Master-Slave function you can link several units and operate without a console.

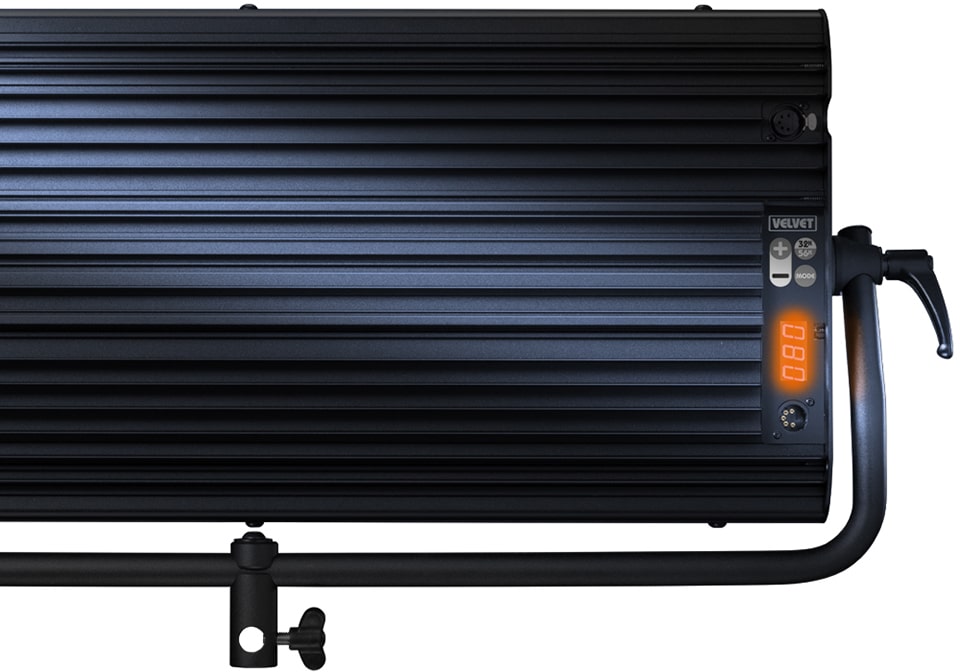

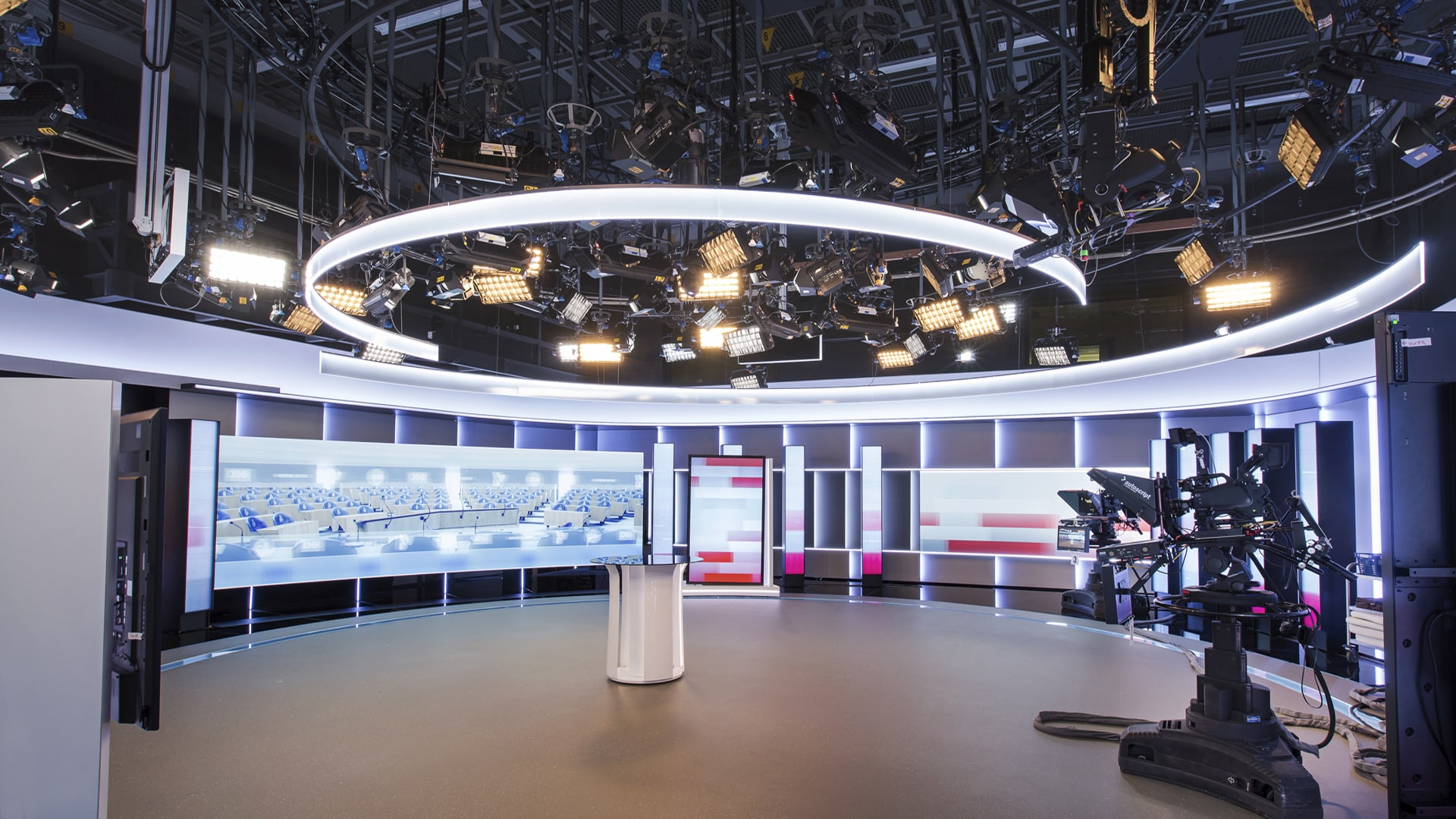

High efficiency with built-in PSU
VELVET has the best lux-watt ratio on the market. High light output with extremely low power consumption.

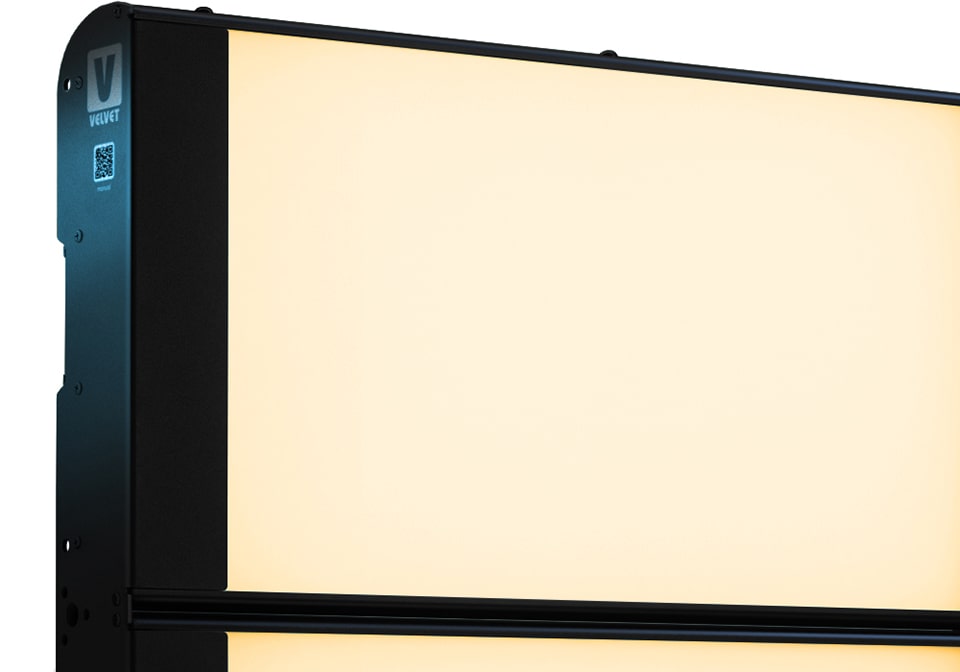

IP41 rated panel
VELVET electronics and the one-piece aluminum heatsink keep the LEDs at the optimum temperature and give the diodes a 50,000-hour lifespan.

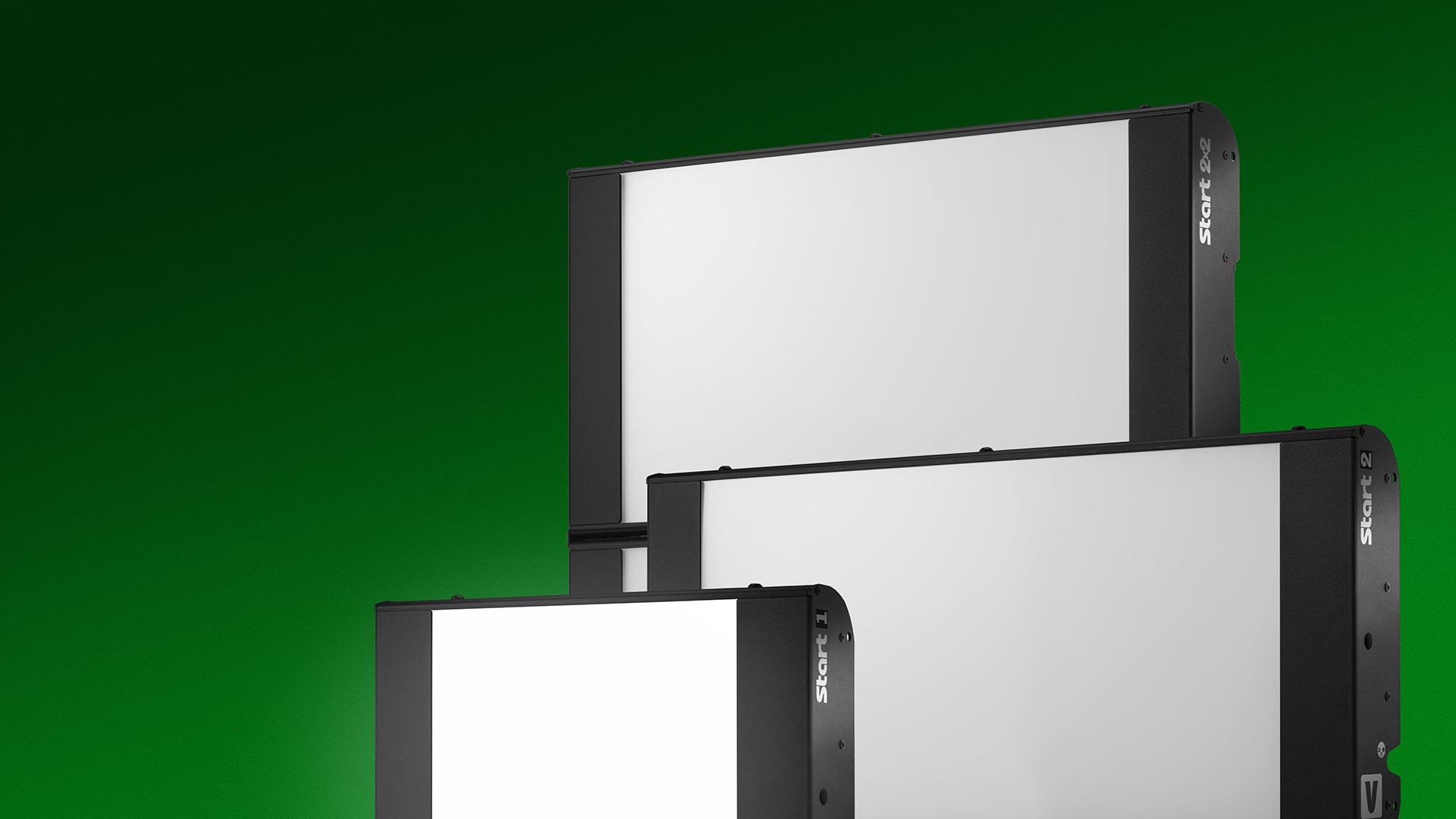

Available models
Choose your fixture
VELVET Start 1
VELVET Start 2

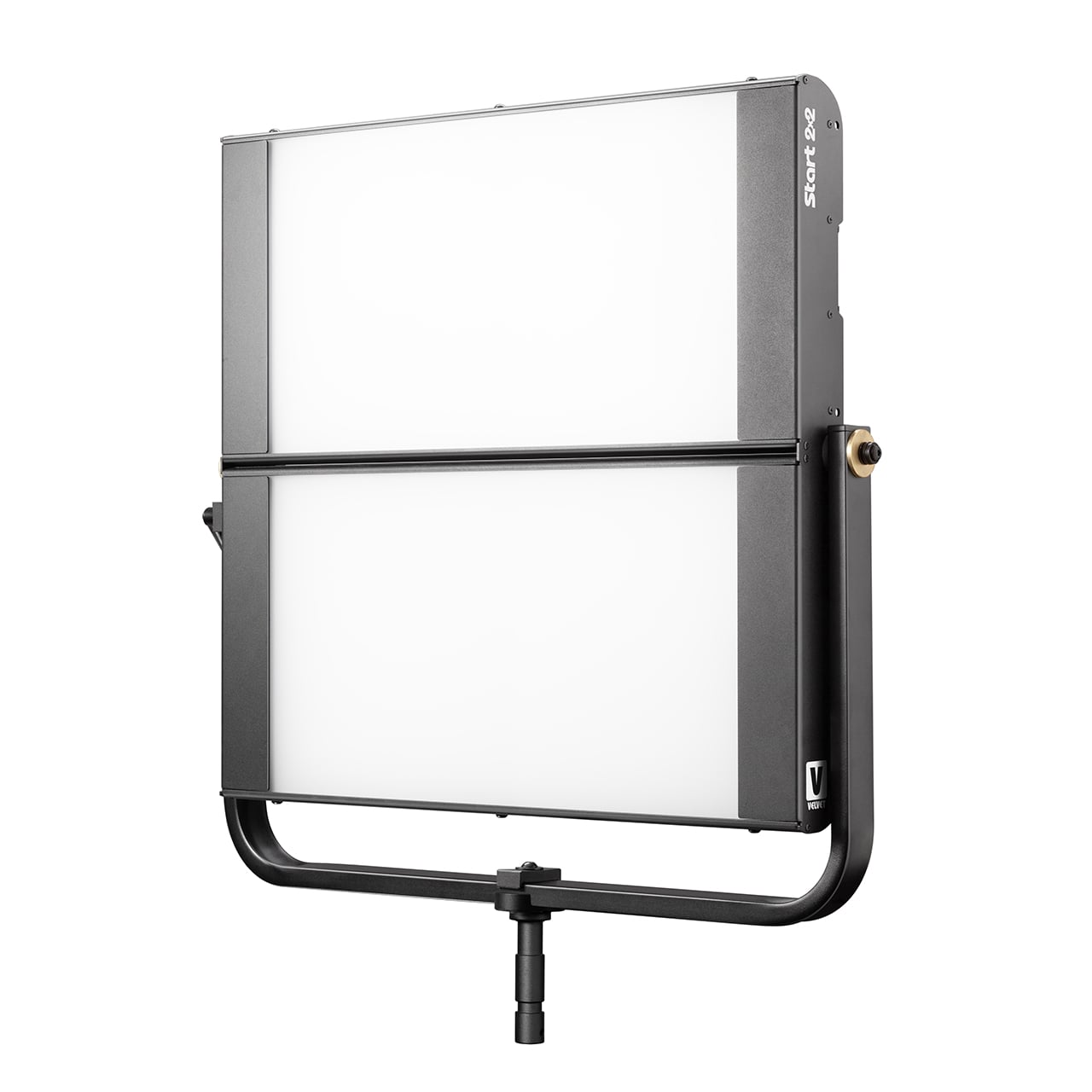

VELVET Start 2×2
VELVET Start 1
VELVET Start 2
VELVET Start 2×2
Color temperature
Continuously adjustable from 3.000K to 6.000K (100K increments)
Light intensity
Dimmable 0 to 100, smooth and flicker-free
Local control
Shock proof buttons and display
Tlci index
92 at 3200K and 95 at 5600K

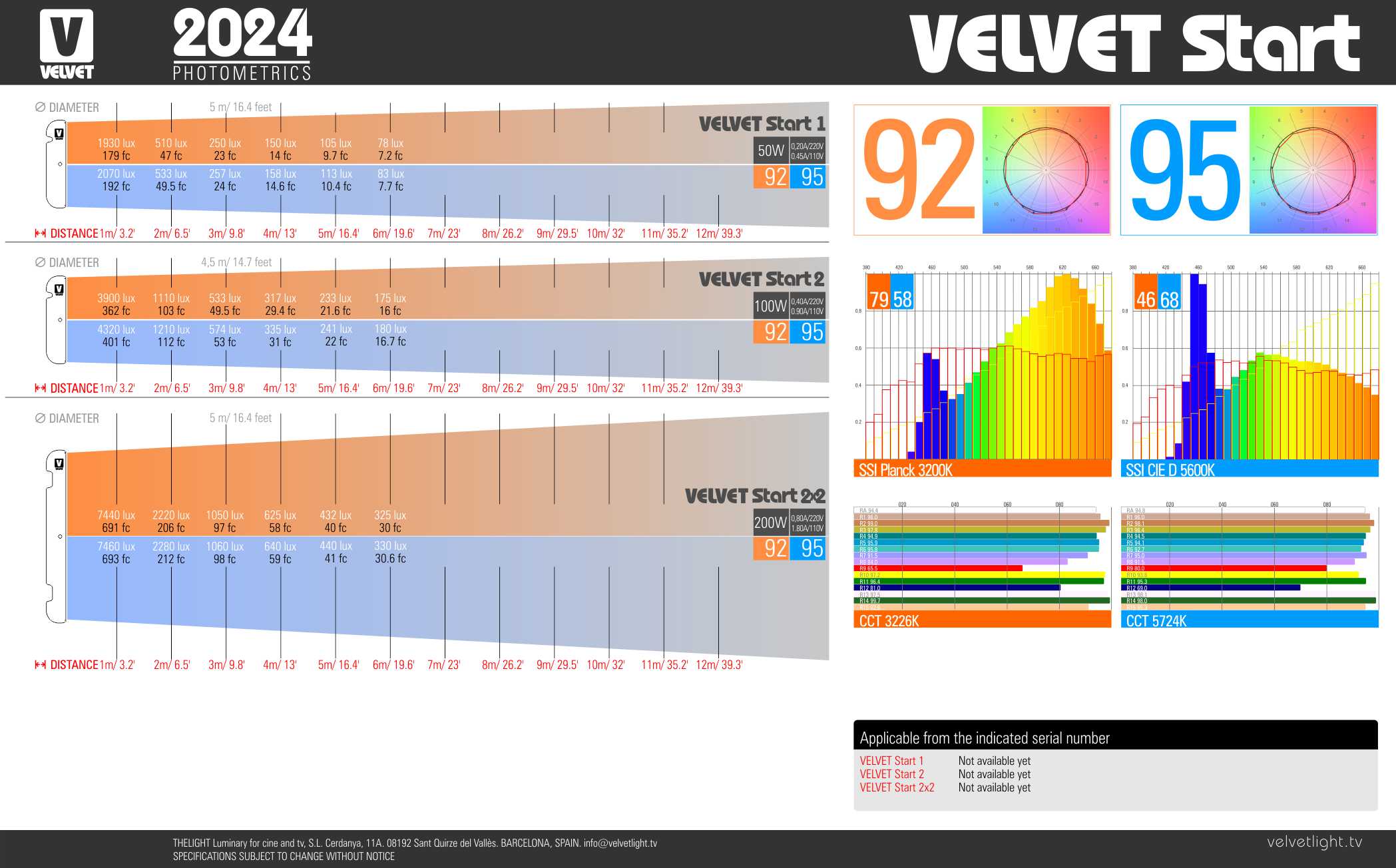

Photometrics
2070 lux / 192 fc at 1m / 3 feet
257 lux / 24 fc at 3m / 10 feet
Beam angle
100º
Wire control
DMX-RDM with XLR-5 In & Out connectors
Dimensions
384 x 310 x 68,5 / 15.1” x 12.2” x 2.7” (panel)
495x395x68mm / 19.5 ”x15.5”x2.7” (panel+yoke)
Weight
3,5kg / 7,7 lbs (panel)
4kg / 8,8 lbs (panel + yoke)
Power draw
50W
Power supply
90-264 VAC 50/60Hz
Led rated life (L70)
More than 50.000 hours L70
More than 35.000 hours L80
Power connection
Neutrik PowerCon TRUE1 TOP In connector
Ouput frequency
2000 fps
Cooling
No-noise, fan-free passive cooling
Cooling
No-noise, fan-free passive cooling
Protection
IP41 index protection
Velvet led technology
Selected BIN LED core unit + optic diffuser + CPU software control
Rigging options
Aluminum yoke with 16 female combined with 28 pin, pole operated yoke,
multipanels yokes
Quick mounting accessories
Foldable SnapBag, foldable Snapgrid, removable barn doors, cordura case,
hard case
Construction & finish
Black anodized extruded aluminum and black powder coated sheet aluminum
Accesories
Yoke
Ref: VP2-YT
Tubular yoke Kit without spigot for VP2 and VS2ST
Yoke
Ref: VP2X2-YT
Rectangular tube yoke kit without spigot for VP2X2 and VS2X2
Pole Operated
Ref: VL1-YPO
Pole Operated yoke kit for VL1, VP1 and VS1
Pole Operated
Ref: VL2-YPO
Pole Operated yoke for VL2 and VP2
Pole Operated
Ref: VL2X2-YPO
Pole Operated yoke for VL2X2 and VP2X2
Junior pin
Ref: EV-EURO28TK
Kit Euro28mm. junior pin for tube yoke
Compact junior/ baby
Ref: THE-2816CTUBEK
KIT Compact 28mm. junior pin & 16mm baby receiver combined for VELVET tubular yoke
Junior pin
Ref: EV-EURO28RYK
Kit Euro28mm. junior pin for rectangular tube yoke
C-clamp
Ref: V-CCLAMPK
C-clamp to hung lights
Clamp
Ref: ACC-460CLAMP
Truss 50mm. Half Coupler clamp with M10 screw
Barndoors
Ref: VL1-RB
Barndoors for VL1 and VP1
Barndoors
Ref: VL2-RB
Barndoors for VL2 and VP2
Barndoors
Ref: VL2X2-RB
Barndoors for VL2X2 and VP2X2
Snapgrid
Ref: VL1-SG
DopChoice 40º foldable Snapgrid for VL1 and VP1
Snapgrid
Ref: VL2-SG
DopChoice 40º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2-SG20
DopChoice 20º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2-SG60
DopChoice 60º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2X2-SG
DopChoice 40º foldable Snapgrid for VL2X2 and VP2X2
Snapgrid
Ref: VL2X2-SG20
DopChoice 20º foldable Snapgrid for VL2X2 and VP2X2
Snapbag
Ref: VL1-SB
DopChoice Snapbag softbox for VL1 and VP1
Snapbag
Ref: VL2-SB
DopChoice Snapbag softbox for VL2 and VP2
Snapbag
Ref: VL2X2-SB
DopChoice Snapbag Softbox for VL2X2 and VP2X2
Snapgrid
Ref: VL1-SGXSB
DopChoice 40º Snapgrid 40x40cm. for Snapbag VL1 and VP1
Snapgrid
Ref: VL2-SGXSB
DopChoice 40º Snapgrid for Snapbag VL2 and VP2
Snapgrid
Ref: VL2X2-SGXSB
DopChoice 40º Snapgrid for Snapbag VL2X2 and VP2X2
Spacelight
Ref: VL2X2-SPACEKIT
Spacelight Hilite kit + mount frame for VL2X2 and VP2X2
Hanger mount
Ref: VL2X2-H
Hanger mount for VL2X2 and VP2X2
Slots kit
Ref: VL2X2-SLOTKIT
Slots kit for VL2X2 and VP2X2
Bag
Ref: VL1-BAG
Soft bag for 1x VL1 or VP1
Double Bag
Ref: VL1-DBAG
Soft bag for 2x VL1 or VP1
Triple Bag
Ref: VL1-TBAG
Soft bag for 3x VL1 or VP1
Bag
Ref: VL2-BAG
Soft bag for 1x VL2 or VP2
Flight case
Ref: VL1-CASE
Flight case for VL1 or VP1
Flight case
Ref: VL2-CASE
Flight case for VL2 or VP2
Flight case
Ref: VL2X2-CASE
Flight case for VL2X2 and VP2X2
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
