Yoke
Ref: VP1-YT
Tubular yoke Kit without spigot for VP1 and VS1
VELVET Power
The most versatile bicolor panel
Green
product
IP54
protection
Bicolor
pannel
Highlights
Hard and soft light in the same fixture
VELVET Power is incredibly efficient and versatile. Its concentrated beam of 15º or 30º can be easily modified by special VELVET filters to convert it into a standard softlight panel. Professional quality white light with pure color rendition over 97 TLCI to avoid any green deviation for perfect skin tones and real colors. Precise color temperature adjustment from 2700 to 6500K.

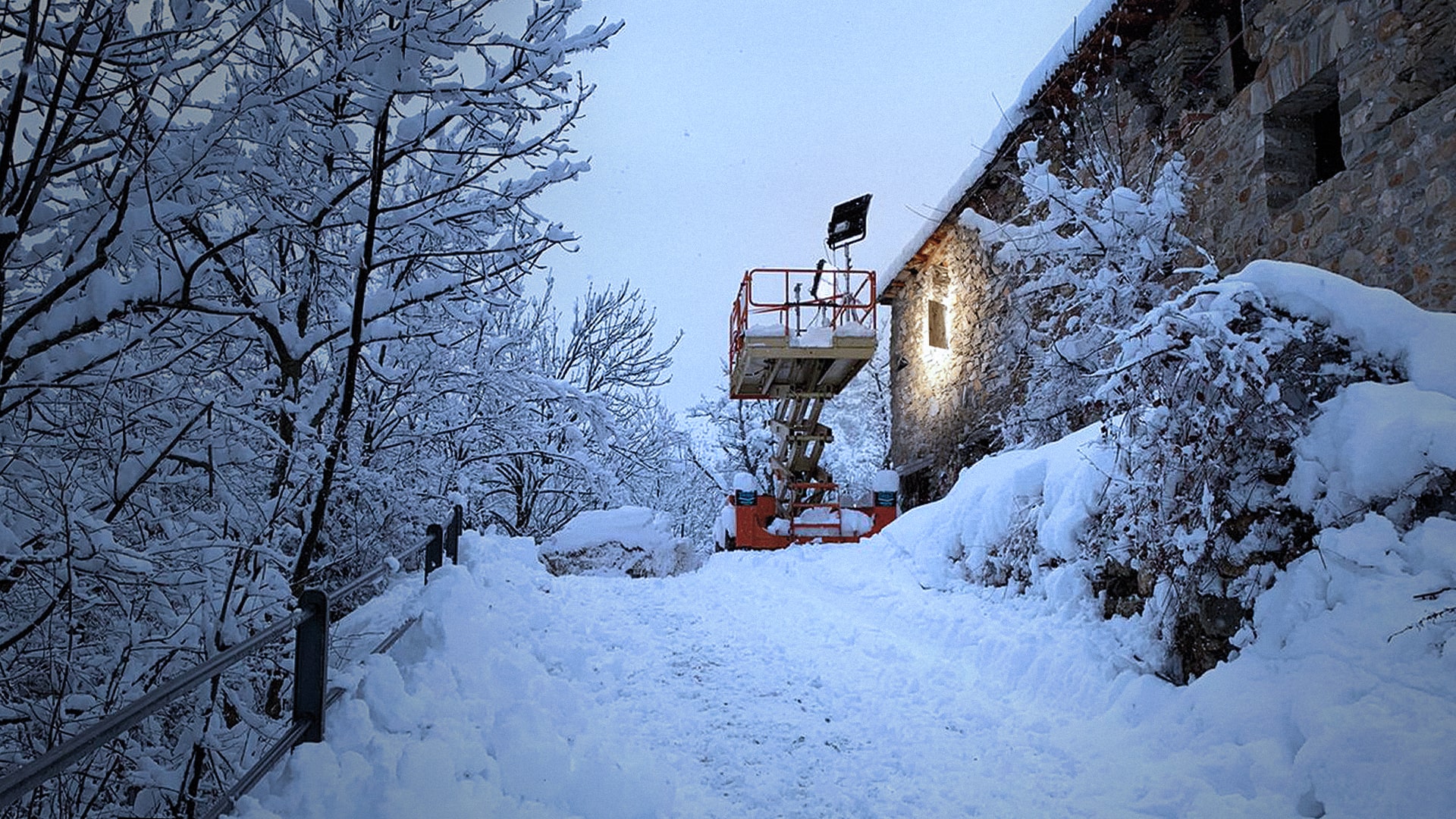

Weatherproof rated panel
Rainproof IP54 rated lighting fixture made to endure the toughest shooting conditions on any location or in any studio.
Totally silent fanless operation
Completely silent operation due its fan-free passive cooling design. None of the vulnerabilities of fan-based cooling. VELVET electronics and the one-piece aluminum heatsink keep the LEDs at the optimum temperature and give the diodes a 50,000-hour lifespan.
Lightweight low-carbon aluminum body
Lightweight panel and shock resistant housing made from recycled low-carbon aluminum which reduces our/your carbon footprint. A real “made to last” lighting fixture 100% manufactured in Barcelona.
On-board and DMX RDM control
The perfect solution on Studio simplifying the assignment and channel addressing of every fixture. Bi-directional DMX RDM dual XLR 5 connectors. DMX remote control even without a controller. With the Master-Slave function you can link several units and operate without a console.
High efficiency: 100% output even with batteries
VELVET Power has the best lux-watt ratio on the market and can be powered with any universal battery or AC with its V-Lock or Gold battery mount. No output decrease; Its industry-leading efficiency allows for full light output using standard batteries.
Available models
Choose your fixture
VELVET Power 1 IP54
VELVET Power 1 Spot IP54
VELVET Power 1 Studio
VELVET Power 1 Spot Studio
VELVET Power 2 IP54
VELVET Power 2 Spot IP54
VELVET Power 2 Studio
VELVET Power 2 Spot Studio
VELVET Power 2×2 IP54
VELVET Power 2×2 Spot IP54
VELVET Power 2×2 Studio
VELVET Power 2×2 Spot Studio
VELVET Power 1 IP54
VELVET Power 1 Spot IP54
VELVET Power 1 Studio
VELVET Power 1 Spot Studio
VELVET Power 2 IP54
VELVET Power 2 Spot IP54
VELVET Power 2 Studio
VELVET Power 2 Spot Studio
VELVET Power 2×2 IP54
VELVET Power 2×2 Spot IP54
VELVET Power 2×2 Studio
VELVET Power 2×2 Spot Studio
Color temperature
Adjustable from 2700K a 6500K (100K increments)
Light intensity
Dimmable 0 to 100 (smooth and flicker-free)
Local control
Shock proof buttons and display
Wireless control
DMX-RDM with XLR-5 In connector (In & Out with DMX splitter)
Tlci index
98 at 3200K and 96 at 5600K
Photometrics
2150 lux / 200 fc at 3m / 9.8 feet
585 lux / 54 fc at 6m / 20 feet
Beam angle
30º Nominal
45º With D25 filter
60º With D50 filter
105º With D100 filter
115º With DVELVET filter
Dimensions
380x308x68mm / 15”x12”x2.7” (panel)
495x395x68mm / 19.5 ”x15.5”x2.7” (panel+yoke)
Weight
4.2 kg / 9.3 lbs (panel)
4.7 kg / 10.4 lbs (panel + yoke)
Power draw
100 W / 0.91 Amps at 110 VAC
Power supply
12-35V DC via XLR3
V-Lock or Gold mount battery plate
90-264V AC 50/60Hz
Led rated life (L70)
More than 50.000 hours
Power connection
Neutrik XLR-3 DC In connector
Ouput frequency
2000 fps
Operation temperature
From -20oC to +40oC
Cooling
No-noise, fan-free passive cooling
Protection
IP54 rainproof, indoor or outdoor use
Velvet led technology
Selected BIN High-power LED + VELVET custom optics + CPU software control
Construction & finish
Made of black powdercoated extruded and sheet aluminum
Accesories
Yoke
Ref: VP2-YT
Tubular yoke Kit without spigot for VP2 and VS2ST
Yoke
Ref: VP2X2-YT
Rectangular tube yoke kit without spigot for VP2X2 and VS2X2
Pole Operated
Ref: VL1-YPO
Pole Operated yoke kit for VL1, VP1 and VS1
Pole Operated
Ref: VP2-YPO
Pole Operated yoke for VP2 and VS2
Pole Operated
Ref: VL2X2-YPO
Pole Operated yoke for VL2X2 and VP2X2
Center ball head
Ref: VL2-QLS
VELVET 2 center ball head
Junior pin
Ref: EV-EURO28TK
Kit Euro28mm. junior pin for tube yoke
Compact junior/ baby
Ref: THE-2816CTUBEK
KIT Compact 28mm. junior pin & 16mm baby receiver combined for VELVET tubular yoke
Junior pin
Ref: EV-EURO28RYK
Kit Euro28mm. junior pin for rectangular tube yoke
C-clamp
Ref: V-CCLAMPK
C-clamp to hung lights
Power supply
Ref: VL-PSU120WNC
120W AC power supply for VL1 and VP1 + mount
Power supply
Ref: VL1IP54-PSUNC
120W Weatherproof AC power supply + mount for VL1IP and VP1IP
Power supply
Ref: VL1ST-PSUNC
120W AC power supply + mount for VL1ST and VP1ST
Power supply
Ref: VP2IP54-PSUNC
200W weatherproof AC power supply VELVET Power 2 + mount
Power supply
Ref: VL2ST-PSUNC
150W AC power supply VL2ST + mount
Power supply
Ref: VP2X2IP54-PSUNC
340W weatherproof AC power supply + mount for VP2X2 IP54
Power supply
Ref: VP2X2ST-PSUNC
340W AC power supply + mount for VP2X2ST
Battery adapter
Ref: VL1-VLOCK
Vlock battery adapter on VELVET plate for VL1 and VP1
Double Vlock battery adapters
Ref: VL2-VLOCK
Double Vlock battery adapter + mount for VL2 and VP2
Battery adapter
Ref: VL1-GOLD
Gold battery adapter on VELVET plate for VL1 and VP1
Double battery adapters
Ref: VL2-GOLD
Double Gold battery adapter + mount for VL2 and VP2
Diffuser 1/4
Ref: VP1-D25
Diffuser 1/4 for VP1
Diffuser 1/2
Ref: VP1-D50
Diffuser 1/2 for VP1
Diffuser Full
Ref: VP1-D100
Diffuser Full for VP1
Diffuser VELVET
Ref: VP1-DVL
Diffuser VELVET for VP1
Diffuser VELVET
Ref: VP2-DVL
Diffuser VELVET for VP2
Diffuser 1/4
Ref: VP2-D25
Diffuser 1/4 for VP2
Diffuser 1/2
Ref: VP2-D50
Diffuser 1/2 for VP2
Diffuser Full
Ref: VP2-D100
Diffuser Full for VP2
Diffuser 1/4
Ref: VP2X2-D25
Diffuser 1/4 for VP2X2
Diffuser 1/2
Ref: VP2X2-D50
Diffuser 1/2 for VP2X2
Diffuser Full
Ref: VP2X2-D100
Diffuser Full for VP2X2
Diffuser VELVET
Ref: VP2X2-DVL
Diffuser VELVET for VP2X2
Diffusion filters carrying bag
Ref: VP1-FBAG
Diffusion filters carrying bag for 1X1 panels
Diffusion filters carrying bag
Ref: VP2-FBAG
Diffusion filters carrying bag for 2X1 panels
Diffusion filters carrying bag
Ref: VP2X2-FBAG
Diffusion filters carrying bag for 2X2 panels
Barndoors
Ref: VL1-RB
Barndoors for VL1 and VP1
Barndoors
Ref: VL2-RB
Barndoors for VL2 and VP2
Barndoors
Ref: VL2X2-RB
Barndoors for VL2X2 and VP2X2
Snapgrid
Ref: VL1-SG
DopChoice 40º foldable Snapgrid for VL1 and VP1
Snapgrid
Ref: VL2-SG
DopChoice 40º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2-SG20
DopChoice 20º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2-SG60
DopChoice 60º foldable Snapgrid for VL2 and VP2
Snapgrid
Ref: VL2X2-SG
DopChoice 40º foldable Snapgrid for VL2X2 and VP2X2
Snapgrid
Ref: VL2X2-SG20
DopChoice 20º foldable Snapgrid for VL2X2 and VP2X2
Snapbag
Ref: VL1-SB
DopChoice Snapbag softbox for VL1 and VP1
Snapbag
Ref: VL2-SB
DopChoice Snapbag softbox for VL2 and VP2
Snapbag
Ref: VL2X2-SB
DopChoice Snapbag Softbox for VL2X2 and VP2X2
Snapgrid
Ref: VL1-SGXSB
DopChoice 40º Snapgrid 40x40cm. for Snapbag VL1 and VP1
Snapgrid
Ref: VL2-SGXSB
DopChoice 40º Snapgrid for Snapbag VL2 and VP2
Snapgrid
Ref: VL2X2-SGXSB
DopChoice 40º Snapgrid for Snapbag VL2X2 and VP2X2
Spacelight
Ref: VL2X2-SPACEKIT
Spacelight Hilite kit + mount frame for VL2X2 and VP2X2
Hanger mount
Ref: VL2X2-H
Hanger mount for VL2X2 and VP2X2
Slots kit
Ref: VL2X2-SLOTKIT
Slots kit for VL2X2 and VP2X2
Rabbit ears 1x1
Ref: 1X1-RABBITSQ
DopChoice Rabbit Ears aluminum frame for 1X1 panels
Rabbit ears 2x1
Ref: 2X1-RABBITREC
DopChoice Rabbit Ears Rectangular aluminum frame for 2X1 panels
Rabbit ears 2x2
Ref: 2X2-RABBITSQ
DopChoice Rabbit Ears frame for VL2X2 and VP2X2
Snapbag for Rabbit ears
Ref: OCTA-SBR03
OCTA 3 foldable Snapbag 0,9m. diameter for Rabbit Ears mount
Snapgrid
Ref: OCTA3-SG
DopChoice 40º Snapgrid for Octa 3
Snapbag for Rabbit ears
Ref: OCTA-SBR05
OCTA 5 foldable Snapbag 1,5m. diameter for Rabbit Ears mount
Snapgrid
Ref: OCTA5-SG
DopChoice 40º Snapgrid for Octa 5
Snapbag for Rabbit ears
Ref: OCTA-SBR07
OCTA 7 foldable Snapbag 2,1m. diameter for Rabbit Ears mount
Snapgrid
Ref: OCTA7-SG
DopChoice 40º Snapgrid for Octa 7
Bag
Ref: VL1-BAG
Soft bag for 1x VL1 or VP1
Double Bag
Ref: VL1-DBAG
Soft bag for 2x VL1 or VP1
Triple Bag
Ref: VL1-TBAG
Soft bag for 3x VL1 or VP1
Bag
Ref: VL2-BAG
Soft bag for 1x VL2 or VP2
Flight case
Ref: VL1-CASE
Flight case for VL1 or VP1
Flight case
Ref: VL2-CASE
Flight case for VL2 or VP2
Flight case
Ref: VL2X2-CASE
Flight case for VL2X2 and VP2X2
American AC power cable
Ref: ACC2.5M-A
American AC Power cable 2,5m.
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DC extension cable
Ref: CAB-XLR3DCC4.5M
DC extension cable 4,5m. / 15 ft. XLR3
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
UK power cable
Ref: CAB-ACC2MEG
UK AC Power cable 2m.
Schuko AC power cable
Ref: CAB-ACC3.5M
Schuko AC Power cable 3,5m.
DMX splitter
Ref: THE-DMXINOUT
DMX aerial splitter In&Out
