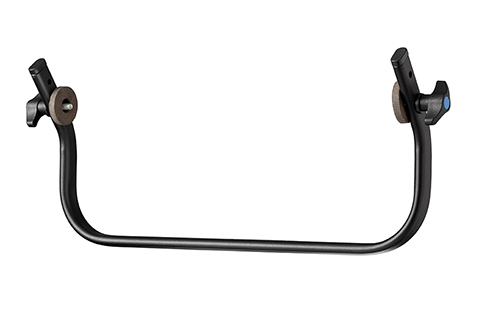

Yoke
Ref: VM1OVAL-YT
Oval tube yoke kit without spigot for VM1
VELVET Mini
The small natural soft light panel
Green
product
IP54
protection
Bicolor
pannel
Highlights
Natural soft light panel for low ceilings
Its small dimensions make it the perfect light for small studios and offices with low ceilings. VELVET Mini offers the same robust, silent, powerful and easy to use VELVET quality light under a small, portable housing for videographers. VELVET Mini series have 98 TLCI for zero green deviation, for perfect skin tones and real colors. Precise color temperature adjustment from 2700 to 6500K.
Weatherproof rated panel
Rainproof IP54 rated lighting fixtures made to endure the toughest shooting conditions on any location or in any studio.
Lightweight low-carbon aluminum body
Lightweight panel and shock resistant housing made from recycled low-carbon aluminum which reduces our/your carbon footprint. A real “made to last” lighting fixture 100% manufactured in Barcelona.
Totally silent fanless operation
Completely silent operation due to its fan-free passive cooling design. None of the vulnerabilities of fan-based cooling. VELVET electronics and the one-piece aluminum heatsink keep the LEDs at the optimum temperature and give the diodes a 50,000-hour lifespan.
On-board and DMX RDM control
The perfect solution for simplifying studio assignments and channel addressing of every fixture. Bi-directional DMX RDM dual XLR 5 connectors. DMX remote control even without a controller. With the Master-Slave function you can link several units and operate without a console.
High efficiency: 100% output even with batteries
VELVET Mini has the best lux-watt ratio on the market and can be powered with any universal battery or AC. No output decrease; its industry-leading efficiency allows for full light output using standard batteries.
Available models
Choose your fixture
VELVET Mini 1 DMX IP54
VELVET Mini 1 IP54
VELVET Mini 1 Studio
VELVET Mini 2 IP54
VELVET Mini 2 Studio
VELVET Mini 3 IP54
VELVET Mini 3 Studio
VELVET Mini 1 DMX IP54
VELVET Mini 1 IP54
VELVET Mini 1 Studio
VELVET Mini 2 IP54
VELVET Mini 2 Studio
VELVET Mini 3 IP54
VELVET Mini 3 Studio
Color temperature
Adjustable from 2700K to 6500K in 100K increments
Light intensity
Dimmable 0 to 100 (smooth and flicker-free)
Tlci index
95 at 3200K and 98 at 5600K
Dimensions
345 x 190 x 90 mm / 13,6”x7,5”x3,5” (panel)
Weight
1,9 kgs / 4,2 lbs (panel)
Power draw
50W / 0,45 Amps at 110 VAC
Power supply
Vock or Gold battery mount
90-264 VAC 50/60Hz through Smart AC adapter
Photometrics
1.200 Lux / 111 fc at 1m / 3 feet
150 Lux / 14 fc at 3m / 10 feet
Beam angle
100º
Led rated life (L70)
More than 50.000 hours
Cooling
No-noise, fan-free passive cooling
Protection
IP54 weatherproof, indoor or outdoor use
Construction & finish
Made of black anodized extruded aluminum and black powder coated sheet
aluminum
Velvet led technology
Selected BIN LED + optic diffuser + CPU software control
Accessories
Smart AC power supply, VELVET DMX remote control, foldable Snapgrid, foldable
SnapBag softbox, removable barn doors, cordura case, hard case
Rigging options
Aluminum yoke with 16mm baby receptacle combined with 28mm junior pin,
four sliding threads ¼” for riggings located on panel sides, double baby pin for
diagonal or vertical position using the standard yoke
Accesories
Yoke
Ref: VM1ST-YT
Flat yoke kit for VM1ST
Yoke
Ref: VM2ST-YT
Tubular yoke kit for VM2ST
Yoke
Ref: VM2-YT
Tube yoke kit without spigot for VM2IP54
Yoke
Ref: VM3-YT
Tubular yoke kit for VM3
Yoke
Ref: VM3ST-YT
Tubular yoke kit for VM3ST
Center ball head
Ref: VM-QLS
Center ball head on mount VM and VE1
Compact junior/ baby
Ref: THE-2816CTUBEK
KIT Compact 28mm. junior pin & 16mm baby receiver combined for VELVET tubular yoke
Junior Pin
Ref: THE-2816MINOV-K
KIT 16mm. junior pin baby receiver for VELVET oval tube yoke
Junior Pin
Ref: THE-2816-K
Kit Compact 28mm. junior pin & 16mm. baby receiver combined for flat yoke
C-clamp
Ref: V-CCLAMPK
C-clamp to hung lights

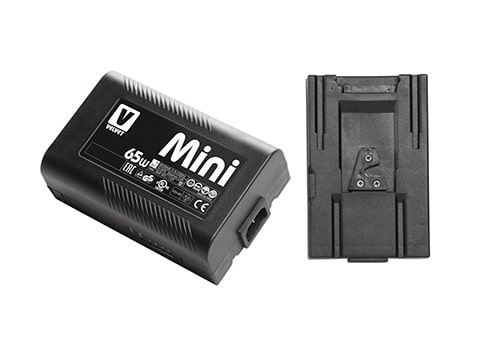

Power adapter
Ref: VM1-PSU65WVLNC
Smart Vlock power adapter 65W for VM1
Power adapter
Ref: VM1-PSU65WGLNC
Smart power supply Gold for VM1

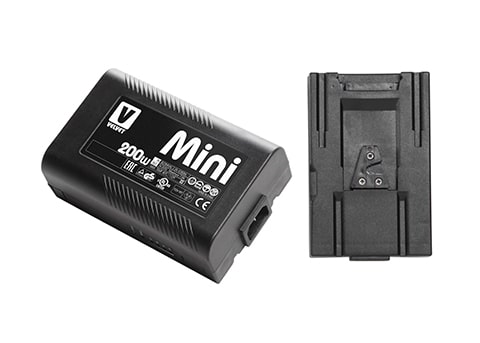

Power adapter
Ref: VM-PSU200WVLNC
Smart Vlock power adapter 200W

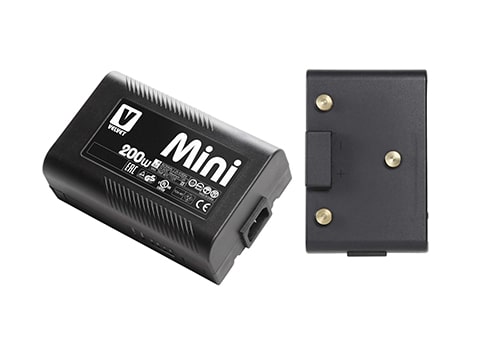

Power adapter
Ref: VM-PSU200WGLNC
Smart Gold power adapter 200W
Vlock adapter plate
Ref: VM-VLOCKIP54
Vlock adapter plate XLR3 IP54 for VM and VE1
Vlock adapter plate
Ref: VM-VLOCKA
Vlock adapter plate XLR3 angle for VM and VE1
Battery adapter
Ref: VM-GOLDA
Gold battery adapter plate XLR3 angle for VM and VE1
Barndoors
Ref: VM1-RB
Barndoors for VM1 and VMP1
Barndoors
Ref: VM2-RB
Barndoors for VM2/VMP2

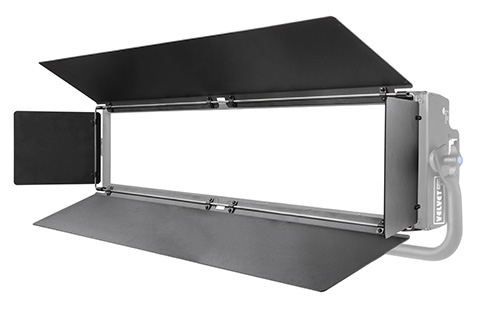

Barndoors
Ref: VM3-RB
Barndoors for VM3
Snapgrid
Ref: VM1-SG
DopChoice 40º foldable Snapgrid for VM1
Snapgrid
Ref: VM2-SG
DopChoice 40º foldable Snapgrid for VM2

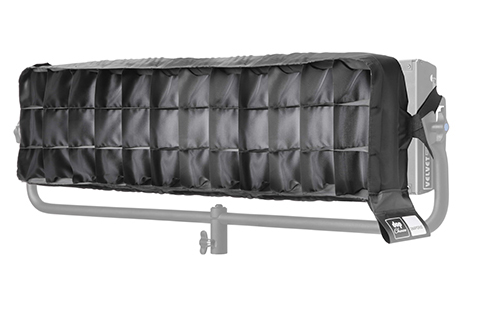

Snapgrid
Ref: VM3-SG
Foldable Snapgrid 40º VM3

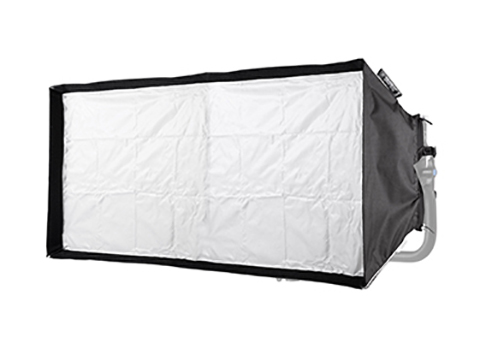

Snapbag
Ref: VM2-SB
DopChoice Snapbag Softbox for VM2

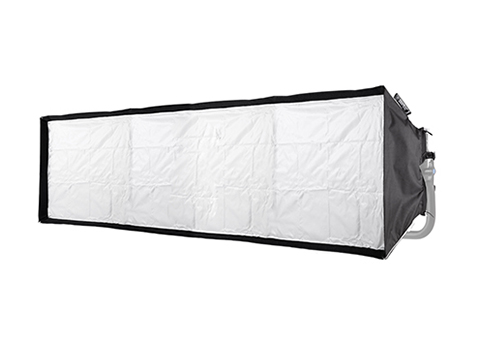

Snapbag
Ref: VM3-SB
DopChoice Snapbag Softbox for VM3

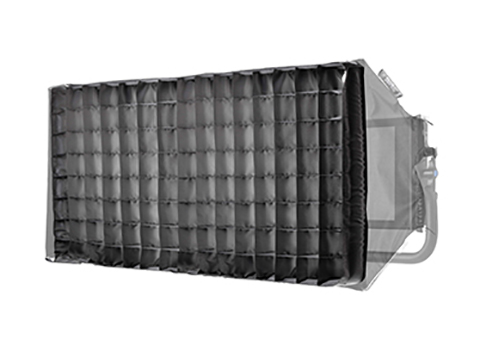

Snapgrid
Ref: VM2-SGXSB
DopChoice 40º Snapgrid 50x90cm. for Snapbag for VM2

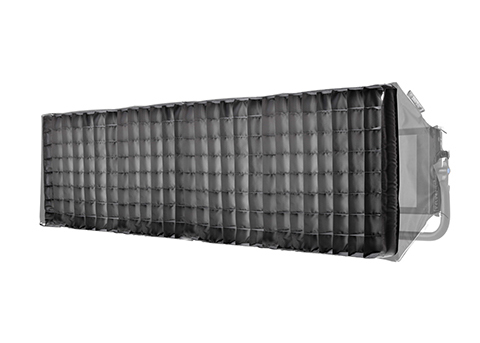

Snapgrid
Ref: VM3-SGXSB
DopChoice 40º Snapgrid 50x115cm. for Snapbag VM3

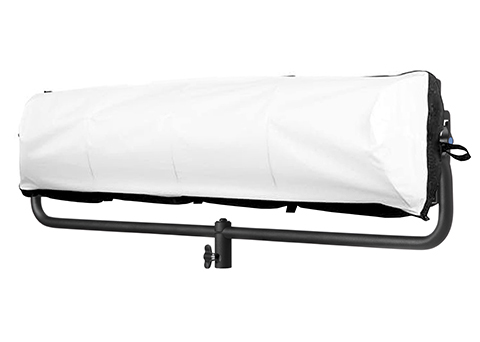

Dome diffuser
Ref: VM3-DOME
DopChoice foldable dome diffuser for VM3

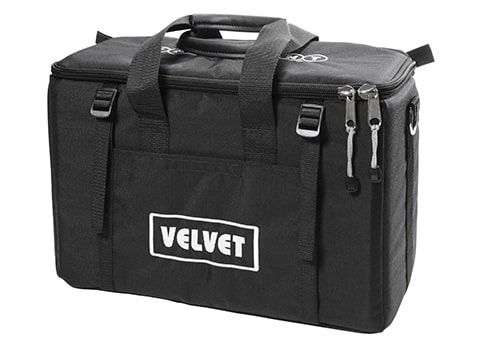

Bag
Ref: VM1-BAG
Soft bag for 1x VM1/VMP1

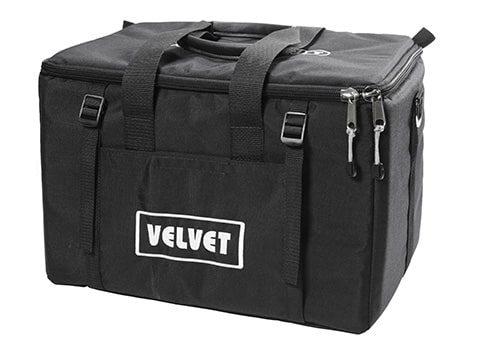

Double Bag
Ref: VM1-DBAG
Soft bag for 2x VM1/VMP1

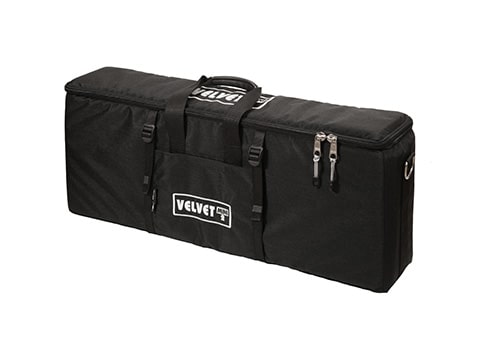

Bag
Ref: VM2-BAG
Soft bag for 1x VM2/VMP2

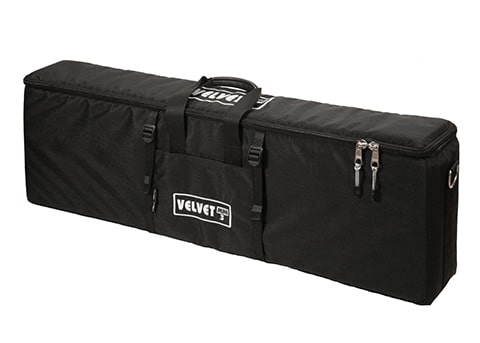

Bag
Ref: VM3-BAG
Soft bag for 1x VM3
American AC power cable
Ref: ACC2.5M-A
American AC Power cable 2,5m.
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DC extension cable
Ref: CAB-XLR3DCC4.5M
DC extension cable 4,5m. / 15 ft. XLR3
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
UK power cable
Ref: CAB-ACC2MEG
UK AC Power cable 2m.
Schuko AC power cable
Ref: CAB-ACC3.5M
Schuko AC Power cable 3,5m.
DMX splitter
Ref: THE-DMXINOUT
DMX aerial splitter In&Out
PowerCon TRUE1 cable
Ref: CAB-PWC4MTRUE
PowerCon TRUE1 daisy-chain cable 4m. / 13ft.
PowerCon TRUE1 cable
Ref: CAB-PWC2MTRUE
PowerCon TRUE1 daisy-chain cable 2m. / 6ft.
