Barndoors for VK200
Ref: VK200-RB
Kit of 4-leaf rotating barndoors for VK200

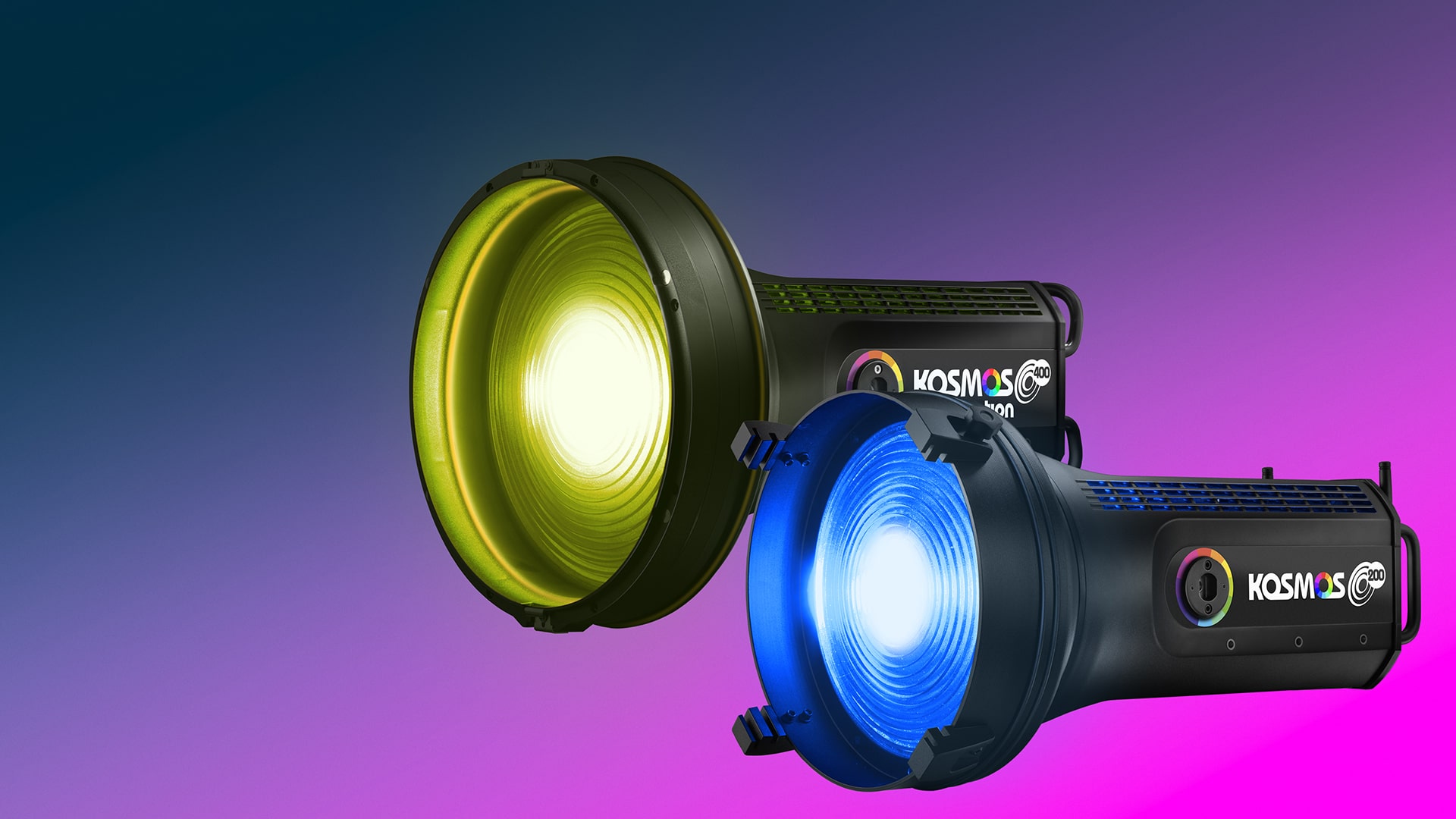

KOSMOS
The real fresnel feeling
Green
product
RGB
pannel
Highlights
Color tunable fresnel light
KOSMOS is the compact color-tunable fresnel with built-in ballast, producing unprecedented output due to its V5LED light engine. KOSMOS simplifies color selection and adjustment showing on the touchscreen the actual color you are creating. High color reproduction (96 TLCI) for color skin tones. Smooth stepless dimming and flicker free operation up to 12000 fps. Any base white light from 2500 to 10000K can be set to combine with any color or gel.
Motorized zoom
Change the powerful light beam angle on air from 13 to 56 locally or remotely with no need to access the luminaire. A lightweight low-carbon aluminum body; KOSMOS has a resistant housing made in recycled aluminum which reduces our/your carbon footprint. A real “made to last” lighting fixture 100% manufactured in Barcelona.
True borosilicate fresnel lens
A true borosilicate glass fresnel lens produces a traditional fresnel shading effect and guarantees a consistent color reproduction over the years. The shadow and color light is homogeneous throughout the beam range. The large size of the lens produces a natural, hard wraparound and directional fresnel light with the VELVET touch to create beauty images.
Total control
KOSMOS can be controlled locally, due to a full color touchscreen, or wirelessly. KOSMOS gives immediate remote control on beam angle, color, effects or presets through DMX-RDM, Wi-fi Artnet and Bluetooth. Using the VELVET GOYA App (Android/IOS) gives instant full control. Create, save, load or share your own gels, effects or user profiles, and use the app’s color-picker to recreate colors from a photo or image.
Silent operation
Four fan operation modes. 1. FAN OFF: option available. 2. SILENT: fan operation with low noise priority. 3. FULL SPEED: fan operation with cooling priority. 4. DYNAMIC: fan speed depending on light engine temperature. VELVET electronics and a passive liquid cooling system with a sealed 3D chamber and silent fan keep the LEDs at the optimum temperature and give the diodes a 50,000-hour lifespan.
High efficiency: 100% output even with batteries
VELVET’s industry-leading efficiency, with the best lux-watt on the market, allows for full light output using standard batteries. KOSMOS can be powered with any universal battery V-lock, Gold or B-mount plates available or with AC. No output decrease.
Available models
Choose your fixture
KOSMOS 400 Location
KOSMOS 400 Studio
KOSMOS 200 color
KOSMOS 400 Location
KOSMOS 400 Studio
KOSMOS 200 color
Optical system
Motorized ZOOM Fresnel + changeable lampheads
Light engine
35mm full color spectrum R+G+B+W+CW VELVET ceramic COB LED
Light aperture
Borosilicate glass Fresnel lens 300mm / 12”
Color temperature
Continously adjustable from 2500K to 10000K (100K increments)
Green-magenta
Continuously adjustable from Full green to Full minusgreen
Color control modes
CTT, HSI, CTT+RGB, Gels and Effects with ZOOM in every Mode
NOTE: base Kelvin white light can be set combined with any color
Light intensity
Smooth 0 to 100%, three selectable dimming curves
Local control
2x rotary knobs and full-color touchscreen display
Wire control
DMX-RDM with XLR-5 in & through connectors, Ethernet Art-Net with RJ-45 connector
Wireless control
LumenRadio CRMX built-in, Wi-Fi Art-Net sCAN and Bluetooth,
Android and iOS using VELVET Goya free charge app
Tlci index
95 at 3200K and 97 at 5600K
Photometrics
13º — 3200K
11115 lux / 1033 fc at 3m / 10 feet - 2820 lux / 262 fc at 6m / 20 feet
13º — 5600K
16500 lux / 1533 fc at 3m / 10 feet - 4265 lux / 396 fc at 6m / 20 feet
50º — 3200K
2660 lux / 247 fc at 3m / 10 feet - 750 lux / 70 fc at 6m / 20 feet
50º — 5600K
4000 lux / 372 fc at 3m / 10 feet - 1050 lux / 97 fc at 6m / 20 feet
Beam angle
13° in spot, 56° in flood. Motorized zoom with stepper motor
Dimensions
320x320x499mm / 12.6”x12.6”x19.6” (fixture) — 320x533x499mm / 12.6”x21”x19.6” (fixture+yoke)
Weight
9.3 kg / 20.5 lbs (fixture)
9.8 kg/ 22.6 lbs (fixture + yoke)
Power draw
400W
AC input voltage
90-264V AC 50/60Hz PowerCon TRUE1 In & Out
dc_input_voltage: DC input voltage
26-48V DC XLR-3 IN connector
Led rated life (L70)
(L70) exceeds 50,000 hours
Ouput frequency
12,000 fps
Operation temperature
From -20ºC to +45ºC
Cooling
Passive liquid cooling system into sealed 3D chamber with ultra silent fan
Protection
IP30, indoor or outdoor protected use
Construction & finish
Fixture and yoke made of die-cast aluminum
Accesories
LumenRadio
Ref: VK-LR
Yoke
Ref: VK42-YTK
Tubular yoke kit for VK200 and VK400 with 28mm junior pin
Pole Operated
Ref: VK42-YPO
Pole Operated yoke kit for VK200 and VK400 with 28mm junior pin
Safety cable
Ref: SLI-200000FS
Safety cable 1m.
Fixed battery plate kitg
Ref: VK42-BP
Fixed battery plate KIT to install quick link adapter on VK200 and VK400
Hexagonal baby pin
Ref: VE-HS
Hexagonal baby pin to mount Evo and KOSMOS batteries plate on stand mast through superclamp
Double battery adapters
Ref: VE-DVLOCKIP
Double Vlock battery adapter on EVO style plate with IP67 connector.
Double battery adapters
Ref: VE-DGOLDIP
Double Gold battery adapter with IP67 XLR3 connector on EVO type plate
Filter frame
Ref: VK400-FF
Filter frame for VK400
Barndoors
Ref: VK400-RB
Barndoors for VK400
Barndoors (8-leaf)
Ref: VK400-RB8
8-leaf barndoors for VK400
Snapbag
Ref: VK400-SB
Snapbag Medium for VK400
Snapgrid
Ref: VK400-SGxSB
DopChoice 40º foldable Snapgrid for Snapbag Medium VK400
Lantern
Ref: VK400-SL
DopChoice large Lantern dome for VK400
Flight case
Ref: VK400-CASE
Flight case with 2 wheels for VK400 kit
Schuko AC power cable
Ref: ACC3.5M-TRUE1
Schuko AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
UK AC power cable
Ref: ACC3.5M-TRUE1UK
UK AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
American AC power cable
Ref: ACC3.5M-TRUE1A
American AC Power cable 1,8m. / 2ft. with aerial PowerCon TRUE1 connector
Bare ends AC Power cable
Ref: ACC3.5M-TRUE1BE
Bare ends AC Power cable 3,5m. / 11ft. with aerial PowerCon TRUE1 connector
DC extension cable
Ref: CAB-XLR3DCC4.5M
DC extension cable 4,5m. / 15 ft. XLR3
DMX daisy-chain cable
Ref: DMX-DMX2M
DMX daisy-chain cable 2m. / 6.5ft.
DMX daisy-chain cable
Ref: DMX-DMX3M
DMX daisy-chain cable 3m. / 10ft.
DMX daisy-chain cable
Ref: DMX-DMX6M
DMX daisy-chain cable 6m. / 20ft.
DMX daisy-chain cable
Ref: DMX-DMX10M
DMX daisy-chain cable 10m. / 33ft.
DMX daisy-chain cable
Ref: DMX-DMX20M
DMX daisy- chain cable 20m. / 66 ft.
PowerCon TRUE1 cable
Ref: CAB-PWC4MTRUE
PowerCon TRUE1 daisy-chain cable 4m. / 13ft.
PowerCon TRUE1 cable
Ref: CAB-PWC2MTRUE
PowerCon TRUE1 daisy-chain cable 2m. / 6ft.
Wi-Fi router
Ref: VE-ROUTER
VELVET Wi-Fi router to remotely control Evo
